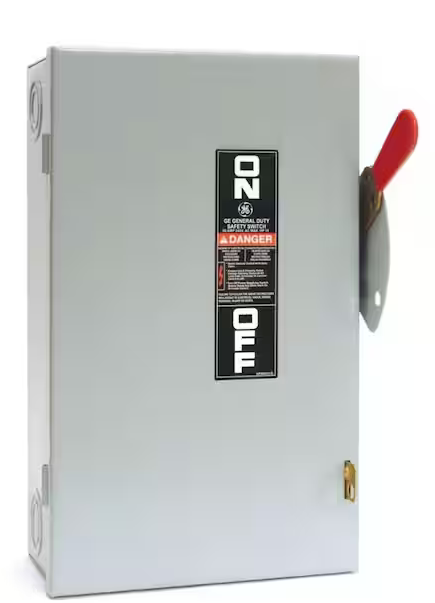

100 Amp 240-Volt Fusible Indoor General-Duty Safety Switch

100 Amp 240-Volt Fusible Indoor General-Duty Safety Switch

Regular price $254.68 USD
Regular price Sale price $254.68 USD
Sale Sold out

Highlights

  • Type-TG general-duty safety switch designed for residential and light commercial applications where duty is not severe
  • Type-1 enclosure offers a durable polyester-paint powder coating for indoor applications
  • Highly visible on/off label helps ensure safety and gives a clean, modern appearance
  • Bright red handle is easy to see and grip
  • Direct-drive, quick-make, quick-break mechanism snaps the contacts open and closed providing positive on/off indication while prolonging switch life
  • Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
  • 3-point mounting pattern simplifies installation and ganging in close quarters
  • Plated stationary and movable contacts deliver reliability and long life
  • Accepts class H, K and R type fuses
  • Plated blades provide visible confirmation of contact position
  • 2-pole, 3 wire, 100 Amp, 240-Volt maximum
  • UL listed short-circuit rating of 10,000 RMS symmetrical Amp
  • CSA listed and ANSI certified
