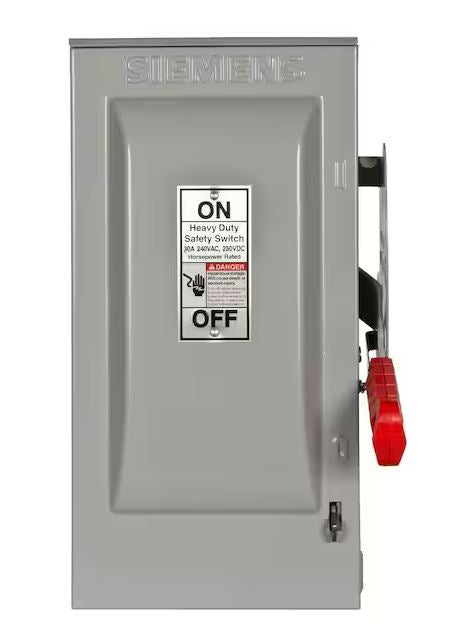

Heavy Duty 30 Amp 240-Volt 3-Pole Outdoor Fusible Safety Switch with Neutral

Heavy Duty 30 Amp 240-Volt 3-Pole Outdoor Fusible Safety Switch with Neutral

Regular price $231.95 USD
Regular price Sale price $231.95 USD
Sale Sold out
  • Highlights

    • 30-Amp, 3-pole, 4-wire, 240-Volt fusible safety switch with neutral
    • NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation or internal icing
    • Quick-make, quick-break operating mechanism that ensures positive operation
    • Visible blade, double-break switching action
    • Arc chutes dissipate heat and prolong switch life
    • Highly visible red handle grip is designed for hook stick operation
    • Defeatable dual cover interlock
    • Center punch provided for field drilling to allow ON padlocking
    • Generous top, bottom and side gutters that meet or exceed NEC wire-bending space requirements
    • Tangential knockouts for easy conduit lineup
    • Side-hinged door that opens past 180° for easier wiring
    • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer's hands
    • Spring reinforced fuse clips that assure reliable contact for cool operation
    • Door latch securely holds door closed and allows cover padlocking
    • Front removable mechanical lugs that are suitable for CU/Al 60° or 75° C conductors
    • Lugs are field convertible to copper body and to a wide variety of compression connectors
    • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
    • Drawn cover for increased rigidity and resistance to abuse
