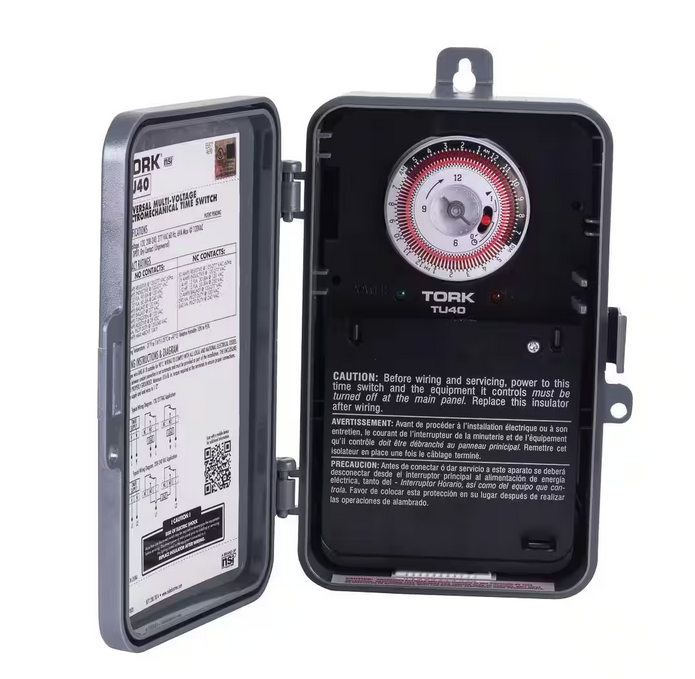

40-Amp Universal Multi-Voltage 24 Hour Mechanical Time Switch

Highlights

• Timer supply is multi-voltage that has automatic input voltage detection for use with 120/208-24-277 VAC 60Hz DPDT dry contacts and the DPDT can also wire as SPST, SPDT and DPST
• It is easy-set with real time clock face and day/night markings for setting trippers, scheduling is minimum on is setting 15 minutes, dial has 96 captive trippers
• It features a bypass switch that sets timer to permanent on, off or timer operation, for vacation mode you set timer off with no change of tripper settings
• Power on green and load on red and LED indicating lights
• Polycarbonate indoor/outdoor NEMA 3R enclosure
