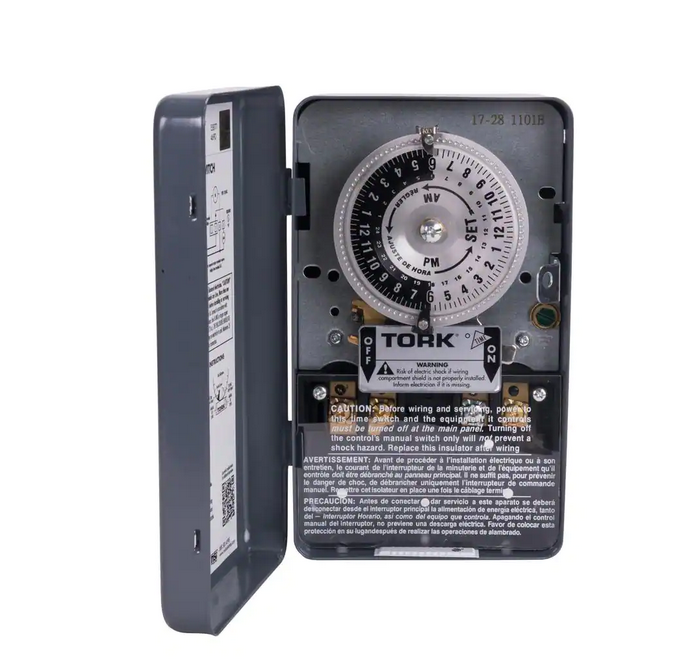

40 Amp 1-Channel 24-Hours Indoor Mechanical Time Switch for Same Time Every Day - 91001023703

Highlights

• Scheduling is minimum on is setting 20 minutes with a minimum off setting of 75 minutes, dial accommodates up to 12 pairs of trippers P47, it features manual override until the next regularly scheduled on or off automatic operation resumes
• Input-voltage of 120 VAC 60 Hz and output contacts is SPST with timing accuracy of line frequency, terminal range of #8 - #14 AWG
• Lockable hasp, metal indoor NEMA 1 enclosure
• Operating temperature range -40 to 165 degree F (-40 to +74 degree C)
• Power consumption of 3-Watt maximum
