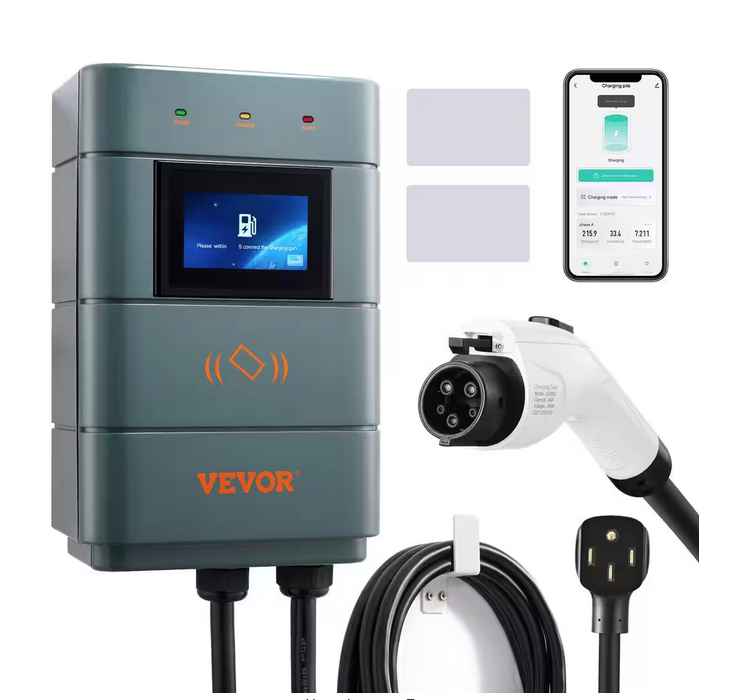

24 ft. 240V Home Outdoor Level 2 EV Charging Station 48 Amp Electric EV Charger IP66 NEMA 14-50 - 91010055190

Highlights

• Intelligent recognition function: EV charging station Level-2 can intelligently identify the user's home circuit, if the circuit cannot withstand charging power, it will automatically switch to the appropriate power charging, you won't have anything to worry about, adjustment unit: 1 A, adjustment range: 0 to 48 Amp
• TPE that does more: our charging cable is made of high-quality TPE, which is flexible even at -22 degrees F, the extra-long charging cable reaches as far as 24 ft., meeting all your needs, the enclosure features PC+ABS material with an IP66 protection level to withstand harsh weather conditions, no matter where you are, you will be ready for anything
• Your security comes first: your security is our primary concern, that is why this smart EV charger is ETL-certified and Energy Star certified, It is equipped with various protection features to keep users and equipment secure, features include over voltage/under voltage/over charge/over current/emergency stop protection/lightning protection
• Real-time monitoring: this home vehicle charging station has a built-in intelligent app to directly monitor the charge status and power consumption, designed with a 4.3-in. touch screen and a three-LED indicator light to easily control the current/mode setting, order/password charging, etc.
• Everything you need: we provide you with complete accessories to make installation effortless, including two RFID cards M1 card, six M8 60 expansion screws, one charging cable hook, one wall hanging fixed plate and one certificate of conformity, the electric car charger is compatible with most electric vehicles and plug-in hybrid vehicles that comply with the J1772 standard, get ready to charge up and hit the road again
• Specifications: voltage: level II 240V ±15%, 60 Hz, power output: 11.5 kW, maximum output current: 48 Amp, charging interface: SAE J1772, input plug: NEME14-50P, IP rating: IP66, charging cable: 24 ft.(2 x8AWG+1 x 10AWG, TPE), input cable: 5 ft.(2 x 8AWG+1 x 10AWG, PVC), certification: ETL certified; Energy Star certified, enclosure material: PC PLUS ABS, Protection Function: Over Voltage, Under Voltage, Over Charge, Over Current Protection, Lightning Protection, Emergency Stop Protection, Indicator Light: Standby - green on; charging - Yellow blinking; alarm -red on, indication of status: Three-LED Light Indicator and 4.3-in. touchscreen, charging mode: swipe card charging/APP charging/password charging/appointment charging, operating temperature: minus 22 to 122 degrees F, relative humidity: 5% to 95% no condensation, standard of reference: CCS1 (combo/Type 1) AC level 2 charging, mechanical timing: 1-24 Hours, item dimensions: 13.11 in. H x 8.39 in. W x 3.62 in. D, packing size: 20.87 in. H x 16.54 in. W x 7.68 in. D, net weight: 17.61 lbs., gross weight: 18.74 lbs.
• Package content: one EV charging station, two RFID cards M1 card, six M8 x 60 expansion screws, one charging cable hook, one wall hanging fixed plate, one certificate of conformity, one product specification
