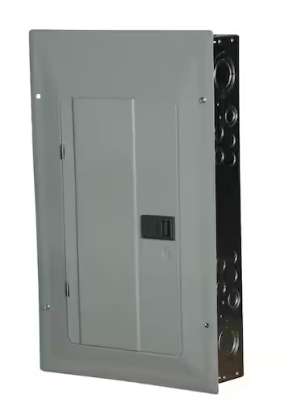

200 Amp 40-Circuit Indoor Main Lug Plug-On Neutral Load Center - 91003940240

Highlights

• Amperage rating: 200 Amp
• Cover: cover included
• Enclosure: NEMA 1
• Bus material: aluminum
• Used with: type BR 1 in. breakers
• BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings
• Dedicated neutral bus for breaker connection
• In-board neutral bar increases gutter space to allow for professional installation of conductors
• Backed out neutral screws allows for quick connection of neutral and ground conductors
• Optimized knockout locations for additional access and easier to remove
• Self-leveling tabs allow for quick drywall offset and helps simplify installation
• Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications
• Rigid cover spine provides strength when twist outs are removed allowing for easier removal
• Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, dual function and surge protection
