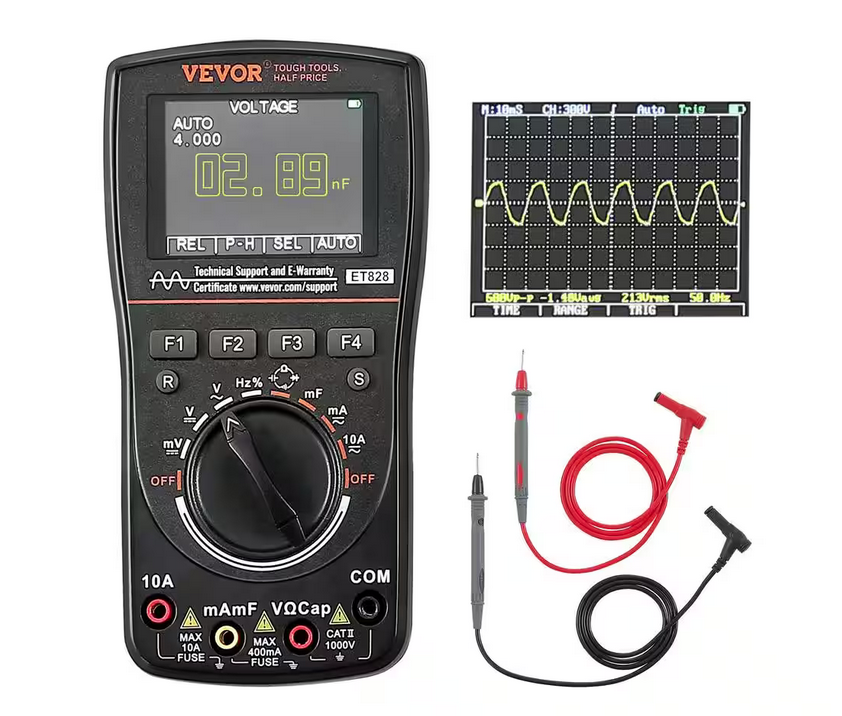

2-in-1 Handheld Digital Oscilloscope 2.5MS/S Sampling Rate 1MHZ Bandwidth Portable Oscilloscope Multimeter - 91011224832

Highlights

• High precision and sampling rate: our handheld oscilloscope boasts high precision and sampling rate, making it capable of detecting a wide range of circuit signals. With a sampling rate of up to 2.5MS/S and a bandwidth of 1MHz, you can analyze and troubleshoot circuits and systems with exceptional accuracy, get ready to delve into your electrical projects with confidence
• Independent data storage and analysis: our digital oscilloscope features independent data storage capabilities to meet your data viewing and analysis needs, it can store up to 100 sets of data and 10 waveform captures, allowing you to access and compare data anytime, anywhere, this makes analyzing test results a breeze, and you'll always have your data at your fingertips for in-depth analysis
• Real-time clear waveforms: our oscilloscope multimeter is equipped with a high-definition color screen that can display clear waveforms in real-time, it also features automatic waveform capture and automatic range adjustment functions, enhancing the accuracy and efficiency of circuit analysis and ensuring that you can easily pinpoint and analyze signal variations
• 2-in-1 multi-functionality: our portable oscilloscope multimeter not only supports a wide range of measurements such as AC/DC current, AC/DC voltage, capacitance, frequency, duty cycle, resistance, and more but also features a user-friendly oscilloscope interface, say goodbye to the hassle of purchasing or dealing with multiple devices, even if you are a beginner
• Portable and efficient combined: looking for a versatile and portable solution for your measurement needs, look no further, our handheld digital oscilloscope weighs in at just 0.64 lb., making it incredibly lightweight and easy to carry, whether you're in the lab, on a work site, or out in the field, our oscilloscope is ready to tackle your challenges with high precision
• Specifications:Item Model Number: ET828,Number of Channels: 1 Channel, 2.5Msps Sampling Rate,Analog Bandwidth: 1MHZ,Sampling Rate: 2.5MS/S,Display: 240 x 320 Color Screen,Backlight: Constantly On,DC Voltage: 400mV - 1000V,DC Current: 40mA - 10A,Resistance: 400.0Ω - 40.00MΩ,Frequency: 5HZ - 5MHZ,AC Voltage: 400mV - 750V,AC Current: 40mA - 10A,Capacitance: 51.2nF - 100μF, 10mF,Duty Cycle: 0.1% - 99.9%,Diode /Continuity Test: ＜50Ω Judgment Resistance, the buzzer will sound,Product Weight: 0.64 lbs. / 0.292 kg,Product Dimensions: 3.27 x 6.30 x 1.26 in. / 83 x 160 x 32 mm
• Package content:1 x oscilloscope,3 x AA batteries, 2 x connecting line,1 x storage bag,1 x user manual
