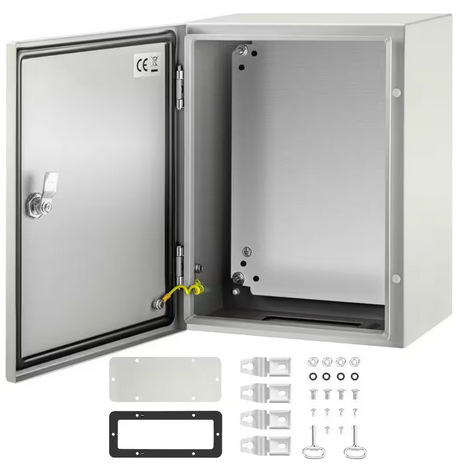

1536 cu.in. Electrical Enclosure NENA 4X IP66 Wall Mount Junction Box 16 in. x 12 in. x 8 in. Carbon Steel Screw Cover - 91007824562

Highlights

• Sturdy Steel Construction: NEMA outdoor enclosure is meticulously crafted from 1.5 mm cold-rolled carbon steel made by precise cutting and welding. Our electrical enclosure got CE, ROHS certificates, has stronger wear resistance, and keeps your equipment well protected in harsh environments
• IP66 Waterproof Grade: The metal electrical enclosure box complies with NEMA 4X and IP66, which has excellent water resistance, and dust resistance. The sealing strip has excellent sealing performance. Direct us as the first option when unfulfilling your demands. VEVOR will resolve any feedback
• Reinforced Lock and Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off. The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing
• Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. Complete accessories and four mounting holes on the back can quickly fix the electrical box on the wall
• Exquisitely Designed Details: The bottom of the metal electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries
• Color: gray (RAL7032),Material: 0.059 in. carbon steel,Coating: epoxy polyester powder coating
• Mounting Plate: 0.079 in. detachable galvanized backplate
• IP rating: designed to meet IP66 and NEMA 1, 2, 4, 4X and 12 specifications
• Connection type: hinged, feature: lockable, waterproof
• Galvanized backplate dimensions: 13.8 in. x 9.8 in. ,outer dimensions (W x H x D): 16 in. x 12 in. x 8 in. ,inner dimensions (W x H x D): 15.6 in. x 11.7 in. x 6.6 in.
• Product weight: 16.98 lbs.,Certification: CE/ROHS certification
• Package content :1 x electrical box ,2 x keys ,1 x mounting plate(the mounting plate has been assembled in the box) ,1 x set of wall mounting pendants ,1 x bottom sealing plate
