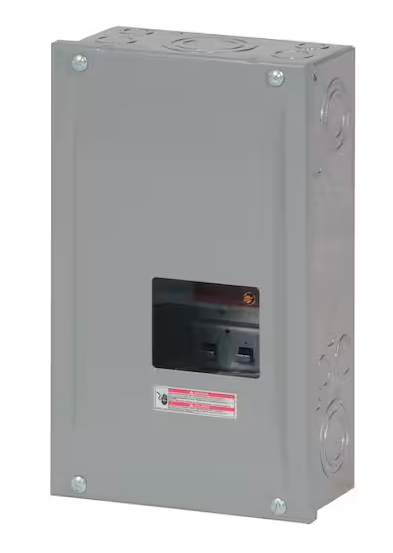

100 Amp 3-Space/Circuit Type BR 3 Phase Main Lug Load Center - 9863759

100 Amp 3-Space/Circuit Type BR 3 Phase Main Lug Load Center - 9863759

Regular price $51.74 USD
Regular price Sale price $51.74 USD
Sale Sold out

100 Amp 3-Space/Circuit Type BR 3 Phase Main Lug Load Center - 9863759

Highlights

  • Amperage rating: 100A
  • Bus material: Aluminum
  • Rated NEMA 1 for indoor use
  • Interrupt rating: 10 kAIC
  • Mounting: Surface
  • Number of circuits: 3
  • Number of spaces: 3
  • Phase: Three-phase
  • Voltage rating: 208Y/120 or 240V
  • Wire size: #14-1/0 AWG Cu/Al at 60°C or 75°C
  • "Tangential" center knockout easier installation for conduit applications
  • Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Drywall marking on enclosure - indicates proper mounting depth for flush applications
  • 3 Phase Applications: strip malls, small office buildings, high rise residential buildings, areas where reduced depth is required, custom homes and workshops, and 3-phase renovation projects
  • Used With: Type BR breakers
