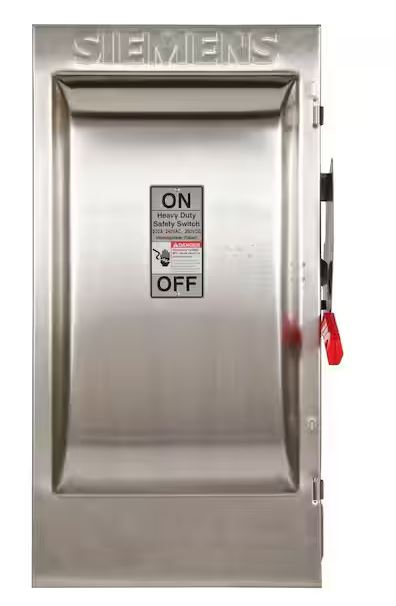

Heavy Duty 200 Amp 240-Volt 3-Pole Type 4X Fusible Safety Switch - 91001262357

Highlights

• 200 Amp, 3 pole, 240-Volt, 3 wire fusible safety switch
• NEMA type 4X: enclosure is intended for indoor or outdoor use primarily to provide a degree of protection against windblown dust, rain, splashing water and hose-directed water, they are not intended to provide protection against conditions such as internal condensation or internal icing, also meets 4X definition by providing a high degree of protection against corrosion
• Quick-make, quick-break operating mechanism that ensures positive operation
• Visible blade, double-break switching action
• Arc chutes dissipate heat and prolong switch life
• Highly visible red handle grip is designed for hook stick operation
• Defeatable dual cover interlock
• Center punch provided for field drilling to allow on padlocking
• Generous top, bottom and side gutters that meet or exceed NEC wire-bending space requirements
• Tangential knockouts for easy conduit lineup
• Side-hinged door that opens past 180° for easier wiring
• Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer's hands
• Spring reinforced fuse clips that assure reliable contact for cool operation
• Front removable mechanical lugs that are suitable for CU/Al 60° or 75°C conductors
• Lugs are field convertible to copper body and to a wide variety of compression connectors
• Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
• Door latch securely holds door closed and allows cover padlocking
