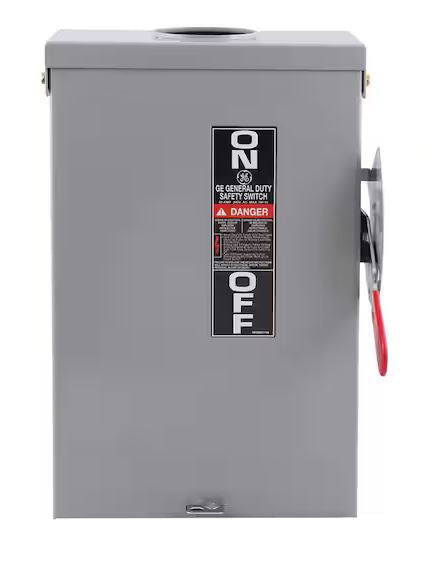

60 Amp 240-Volt Fusible Outdoor General-Duty Safety Switch -

Highlights

• Type-TG general-duty safety switch designed for residential and light commercial applications where duty is not severe
• Type-3R galvanized steel enclosure offers superior rust protection in outdoor applications
• Highly visible on/off label helps ensure safety and gives a clean, modern appearance
• Bright red handle is easy to see and grip
• Direct-drive, quick-make, quick-break mechanism snaps the contacts open and closed providing positive on/off indication while prolonging switch life
• Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
• 3-point mounting pattern simplifies installation and ganging in close quarters
• Plated stationary and movable contacts deliver reliability and long life
• Plated blades provide visible confirmation of contact position
• Single-phase, 2-pole, 60 Amp, 240-Volt maximum
• Accepts class H, K and R fuses
• Closure caps included, hubs ordered separately
• CSA listed and ANSI certified
• UL listed short-circuit rating of 10,000 RMS symmetrical Amp
