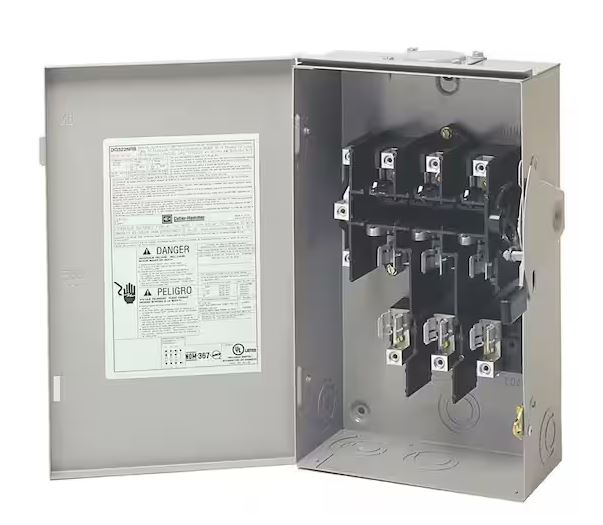

60 Amp 120/240-Volt 14,400-Watt Fused General-Duty Safety Switch - 9800416
60 Amp 120/240-Volt 14,400-Watt Fused General-Duty Safety Switch - 9800416
Regular price
$367.85 USD
Regular price
Sale price
$367.85 USD
Unit price
per
-
Highlights
- Amp Rating is 60A
- Type is general duty cartridge fuse
- Rated NEMA 3R for outdoor use
- Enclosure material is painted galvanized steel
- Fuse configuration is fusible with neutral
- Voltage rating is 240- Volt
- Number of wires is 4
- Number of Poles is 3
- Fuse class provision - Class H fuses (fuses sold separately)
- Ample wire bending space provides for easier installation
- Double and triple padlocking capability increases personnel safety
- The handle position (ON or OFF) can be clearly seen from a distance and the length provides for easy operation
- Visible double-break rotary blade mechanism offers two points of contact for a positive open and close, easier operation, and to help prevent contact burning for longer contact life
Product Information
Store SKU # 9800416
Materials
Materials
Shipping & Returns
Shipping & Returns
Dimensions
Dimensions
10
